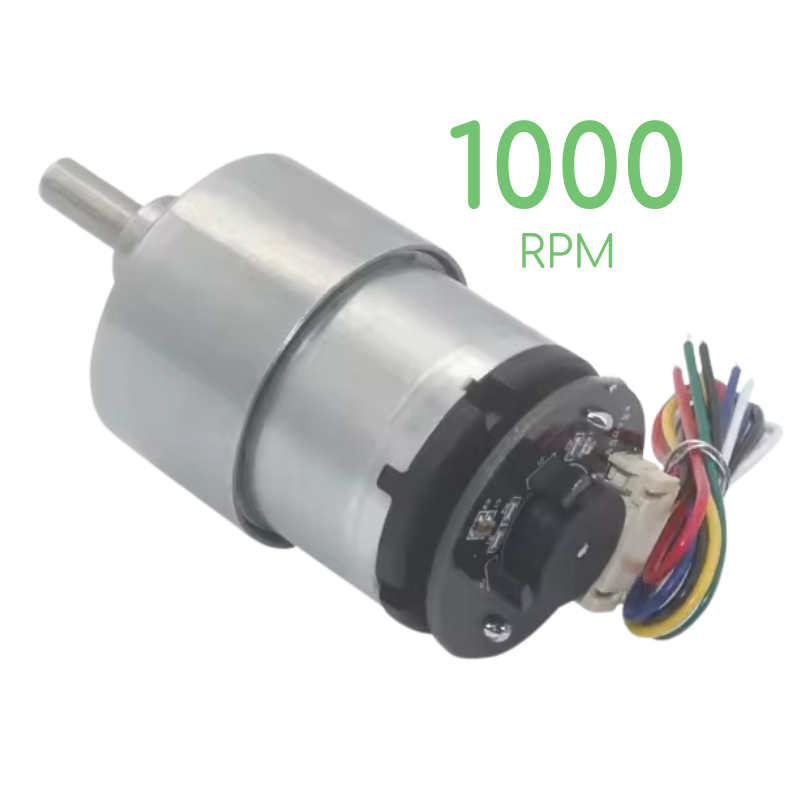

gear motor encoder 12V JGB37-520 DC Geared Motor with Encoder – 1000RPM – VoltaatDescription The JGB37 520 DC Geared Motor with Encoder is a compact brushed motor designed for precise motion control applications. It features a 12V DC motor integrated with a 10: 1 metal gearbox and a built in encoder for accurate speed, position, and direction feedback. The D type output shaft and side shaft configuration support stable mechanical coupling and bidirectional operation. Built for consistent performance, it delivers controlled torque
Description
The JGB37-520 DC Geared Motor with Encoder is a compact brushed motor designed for precise motion control applications. It features a 12V DC motor integrated with a 10:1 metal gearbox and a built-in encoder for accurate speed, position, and direction feedback. The D-type output shaft and side shaft configuration support stable mechanical coupling and bidirectional operation. Built for consistent performance, it delivers controlled torque and reliable speed reduction. This motor is suitable for robotics, automation systems, and closed-loop control projects.
Features
- Integrated quadrature encoder for feedback control
- 10:1 metal gearbox for speed reduction
- Brushed DC motor with stable 12V operation
- D-type output shaft for secure coupling
- Side shaft design for flexible mounting
- Six M3 mounting holes for mechanical stability
- Bidirectional rotation support
- Rated torque up to 1 kg·cm
- Maximum torque up to 1.6 kg·cm
- Low no-load current ≤ 0.12 A
- Compact gearbox length of 19 mm
- Suitable for closed-loop control systems
- Consistent speed under load conditions
- Compatible with motor drivers and controllers
- Designed for robotics and automation applications
Specifications
- Rated voltage: 12 V DC
- Motor type: Brushed DC geared motor with encoder
- No-load speed: 1000 RPM
- Rated speed: 770 RPM
- Reduction ratio: 10:1
- Rated torque: 1 kg·cm
- Maximum torque: 1.6 kg·cm
- No-load current: ≤ 0.12 A
- Rated current: ≤ 1 A
- Stall current: 2.3 A
- Gearbox length: 19 mm
- Shaft type: D-type output shaft
- Mounting: 6 × M3 threaded holes
- Rotation direction: Forward and reverse
- Encoder type: Incremental encoder
